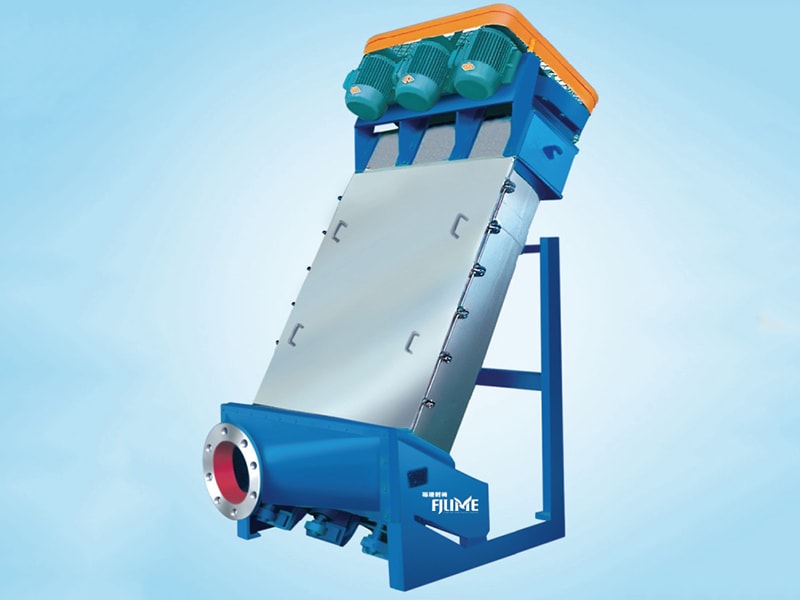

Inclined Screw Thickener

Inclined Screw Thickener

The inclined screw thickener is used for thickening and washing all kinds of pulp, especially waste paper pulp. It can be used together with screw pulp press washer to reach the consistency required by the disperser. With the advantages of simple structure, large production capacity, good dehydration effect and easy maintenance, our inclined screw thickener is increasingly used in the waste paper recycling and papermaking industries.


Specifications of Inclined Screw Thickener
Model Capacity (t/24h) Inlet Consistency(%) Screw Number Outlet Consistency(%) Screen Hole Dia(mm) Screening Space(m2) Motor Power(KW)
ZNX1 10~20 2~4 1 10~12 Φ1.0~2.5 1.2 5.5
ZNX2 20~40 2 1.2×2 5.5×2
ZNX3 50~60 3 1.2×3 5.5×3
ZNX4 20~30 1 1.8 7.5
ZNX5 50~70 2 1.8×2 7.5×2
ZNX6 80~100 3 1.8×3 7.5×3
