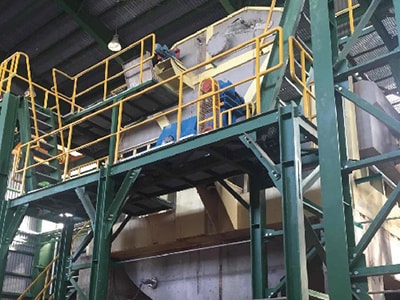

Multi-Disc Filter

Multi-Disc Filter

The multi-disc filter is widely used in waste paper recycling system and paper making industry.

Features
Through the filtering of white water, the recycling rate of fibers is pretty high.




Specifications of Multi-Disc Filter
Model ZNP36 ZNP45 ZNP56
Filtering Disc Dia(mm) 3600 4500 5600
Filtering Disc Number 6~16 8~20 10~20
Filtering Area(mm2) 15 25 38
Motor Power(KW) 7.5~15 15~18.5 22~37
Stock Type OCC pulp and chemical pulp Deinking pulp and grass pulp Water
Inlet Consistency(%) 0.5~0.8 0.5~1.0 0.3~0.5
Outlet Consistency(%) 12(adjustable) 5~10(adjustable) 3.5~49(adjustable)
Capacity(t/24h) 0.7~1.1 0.5~0.7 1.6~2.8
